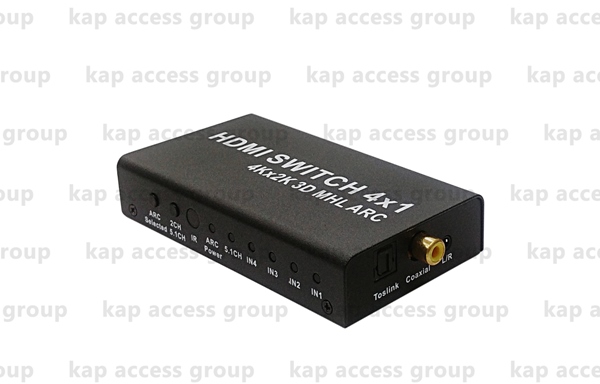

Switch HDMI เข้า 4 ออก 1 จอ Switcher Support ARC / MHL / Audio Separation (4K/ 3D)

Features:

• This is a high performance multi-functional HDMI switcher with four HDMI inputs and one HDMI output. The HDMI switcher with one Toslink interface, one Coaxial interface and one earphone jack to output audio. The swicher has che function of ARC(audio return channel)
• The switcher also supports MHL function, it can connect your mobile phone that have MHL function to the TV. allows you to browse pictures, video audio files in your mobile phone on the big screen HDTV
• The output interface supports Audio Return Channel(ARC)
• Supports MHL function,it can connect the mobile phone supports MHL function to the TV
• Support multiplexed HDMI 3/4-input and 1-output
• The output port supporting Audio Return Channel(ARC)
• HDMI supports :4k*2k @30Hz--3D
• Deep Color support 36/30/24 Audio EDID select function
• HDMI output supports CEC channel
• Support digital audio format, DTS-HD/Dolby-Ture HD/AC3/DTS/DSD

• Video Bandwidth:300Mhz/10.2Gbps

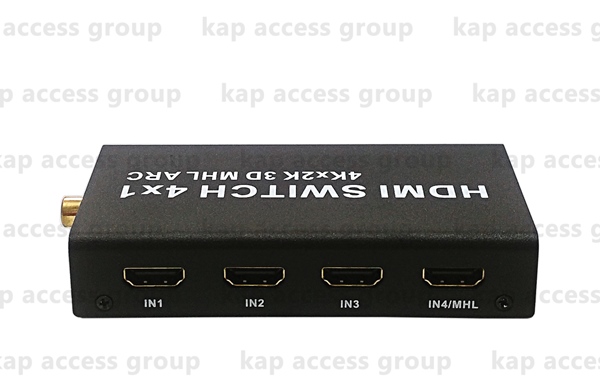

• Input ports:3/4*HDMI(female type)

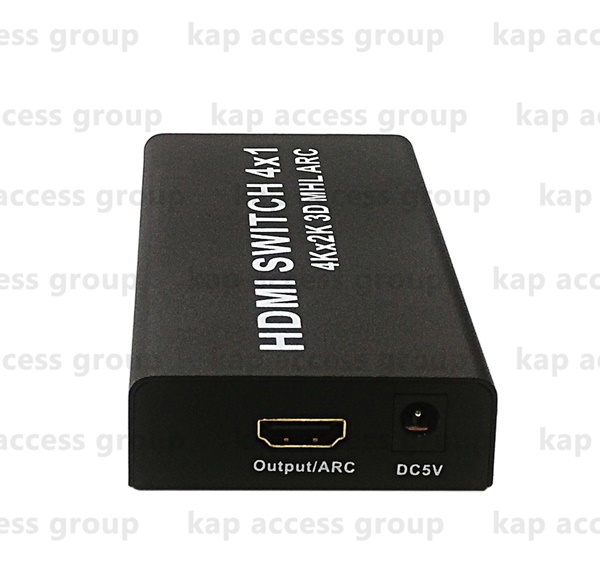

  output ports:1*HDMI(female type)
• Output Resolution:480~1080p50/60,4k*2k@24/30,VGA~UXGA
• HDMI Cable In:1080p/12bits(15m)
• HDMI Cable Out:1080p/12bits(15m)
• Power Supply:DC 5V/1A
• Dimensions:60mm(W)*114mm(D)*22mm(H)
• Chassis Material: Metal
• Operating Temperature:0~40/32~104
• Storage Temperature:-20~60/-4~140
• Relative Humidity:20~90%RH(Non-condensing)
• Power Consumption2WWill increase when use the MHL function)

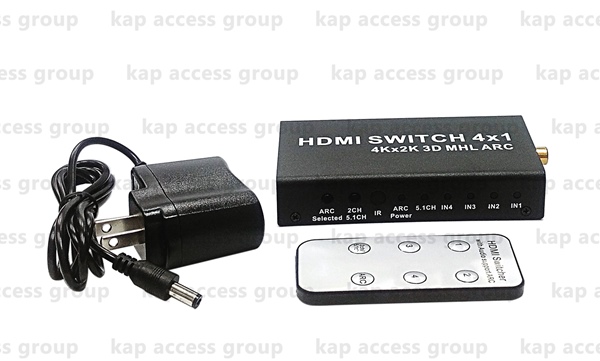

included:
